ASME-BPE Standard

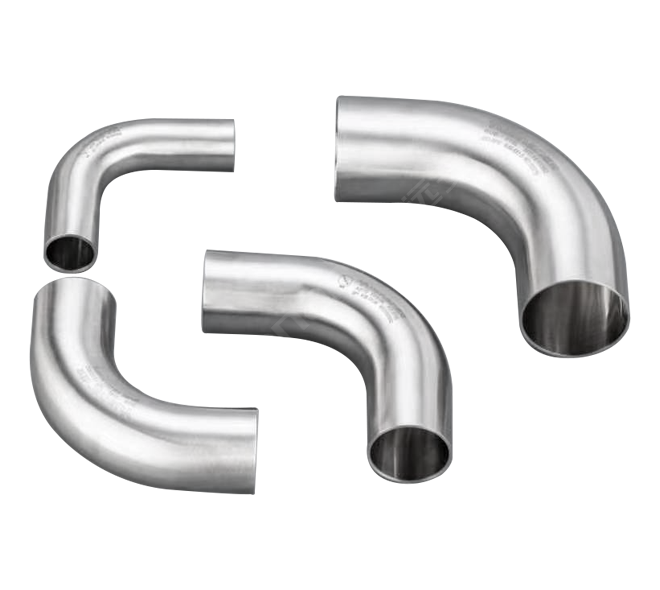

BPE YA-01

Elbow

Pipe Diameter:
⌀ 12.7 — 76.2

Pipe Fitting Material:
304/316L

Ra Value:
0.38/0.51/ Optional electrolytic polishing process

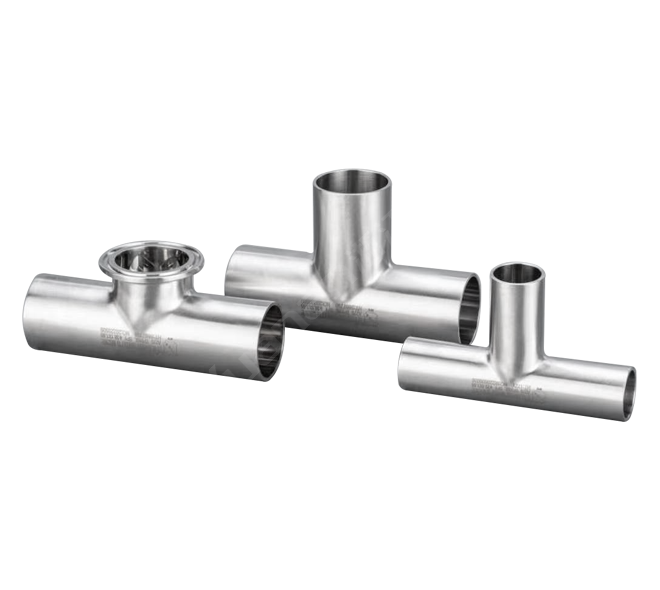

BPE YA-03

Tee

Pipe Diameter:
⌀ 12.7 — 76.2

Pipe Fitting Material:
304/316L

Ra Value:
0.38/0.51/ Optional electrolytic polishing process

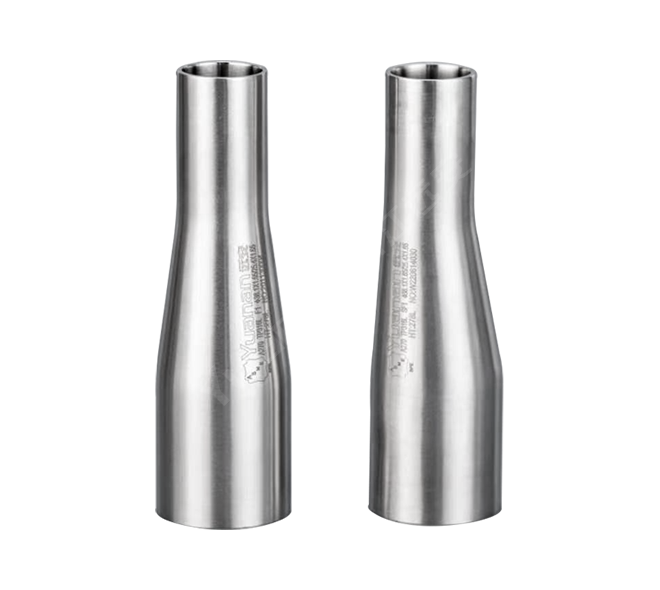

BPE YA-10

Reducing

Pipe Diameter:
⌀ 19.05/12.7 — 76.2/63.5

Pipe Fitting Material:
304/316L

Ra Value:
0.38/0.51/ Optional electrolytic polishing process

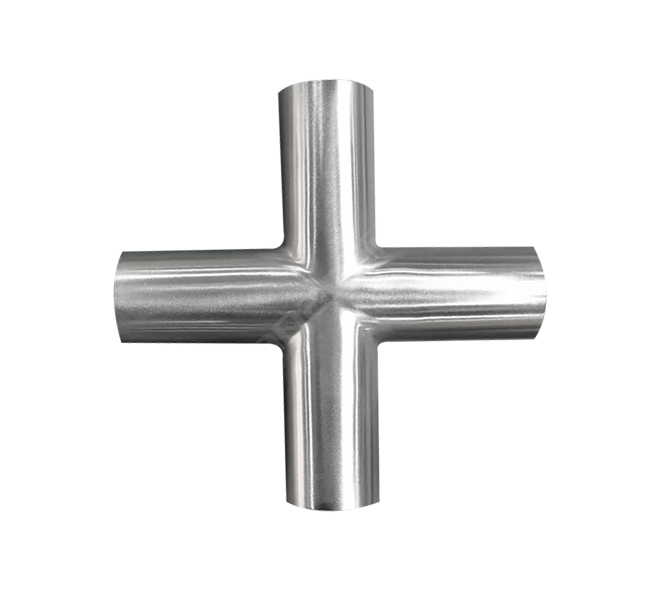

BPE YA-05

Cross

Pipe Diameter:
⌀ 12.7 — 76.2

Pipe Fitting Material:
304/316L

Ra Value:
0.38/0.51/ Optional electrolytic polishing process

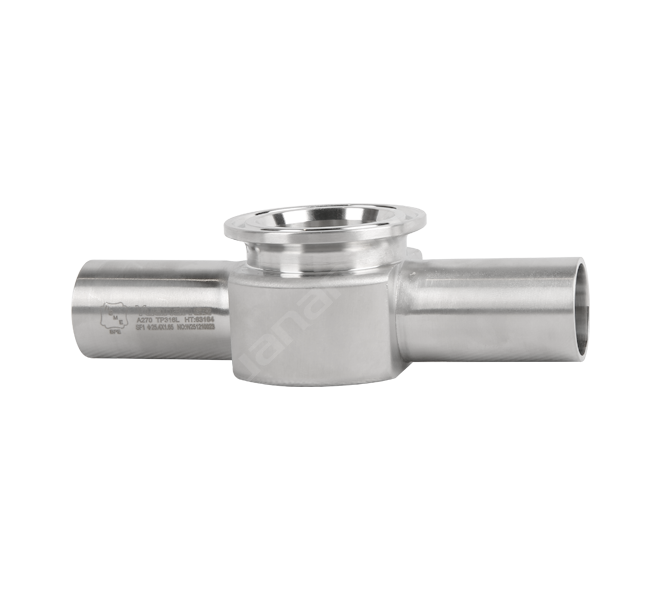

Instrument Straight-through

Pipe Diameter:
⌀ 12.7 — 204

Pipe Fitting Material:
304/316L

Ra Value:
0.38/0.51/0.6/ Optional electrolytic polishing process

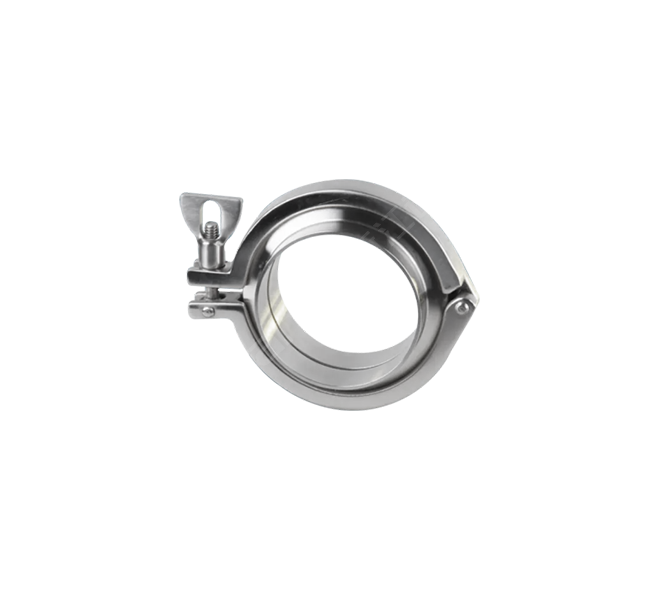

YA-1158

YAHJ Quick-install Live Joint

Connection Caliber:
⌀ 12.7 — 204

Union Material:
304/316L

Union Process:
Forging

Ra Value:
0.38/0.51/0.6/ Optional electrolytic polishing process

Connection Method：
Welding
