Angle Seat Valve Series

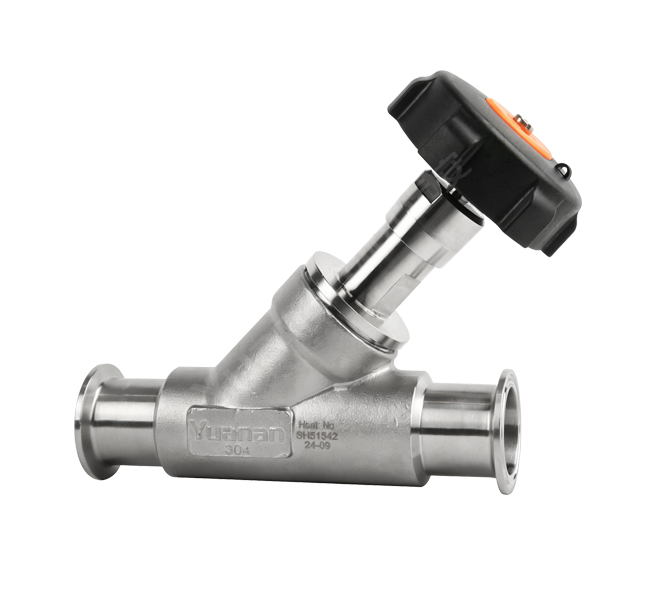

YAJ-103-1

YAZ Manual Angle Seat Valve

Nominal Diameter:
⌀ 19.5 — 76.2

Valve Body Material:
304/316L

Drive Type:
Manual

Sealing Materials:
PTFE/PPL

Pressure Range:
1.0Mpa

Applicable Temperature:
-10 — 110℃(PTFE)
-10 — 180℃(PPL)

Valve Body Process
Casting

Valve Body Ra Value
0.6/0.8

Connection Method
Quick Installation / Welding / Internal Thread

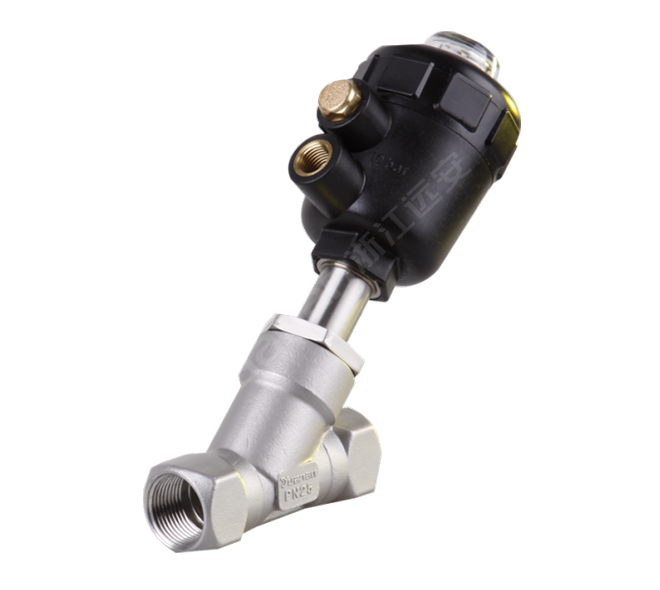

YAJ-103

YAZ Pneumatic Angle Seat Valve（Plastic Actuator）

Nominal Diameter:
⌀ 12.7 — 50.8

Valve Body Material:
304/316L

Drive Type:
Pneumatic

Sealing Materials:
PTFE/PPL

Pressure Range:
1.0Mpa

Applicable Temperature:
-10 — 110℃(PTFE)
-10 — 180℃(PPL)

Valve Body Process
Casting

Valve Body Ra Value
0.6/0.8

Connection Method
Quick Installation / Welding / Internal Thread

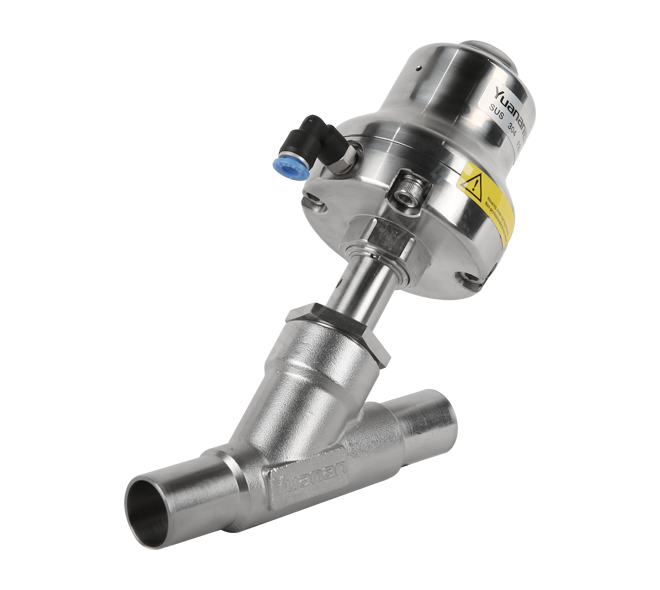

YAJ-106

YAZ Pneumatic Angle Seat Valve（Stainless Steel Actuator）

Nominal Diameter:
⌀ 12.7 — 104

Valve Body Material:
304/316L

Drive Type:
Pneumatic

Sealing Materials:
PTFE/PPL

Pressure Range:
1.0Mpa

Applicable Temperature:
-10 — 110℃(PTFE)
-10 — 180℃(PPL)

Valve Body Process
Casting

Valve Body Ra Value
0.6/0.8

Connection Method
Quick Installation / Welding / Internal Thread

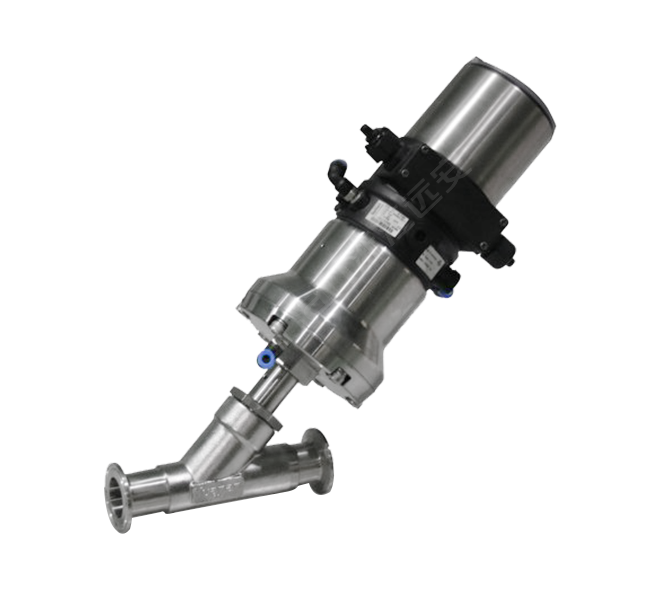

YAJ-108

YAZ Pneumatic Angle Seat Valve（Stainless Steel Actuator / With Positioning Adjustment）

Nominal Diameter:
⌀ 12.7 — 104

Valve Body Material:
304/316L

Drive Type:
Pneumatic

Sealing Materials:
PTFE/PPL

Pressure Range:
1.0Mpa

Applicable Temperature:
-10 — 110℃(PTFE)
-10 — 180℃(PPL)

Valve Body Process
Casting

Valve Body Ra Value
0.6/0.8

Connection Method
Quick Installation / Welding / Internal Thread
